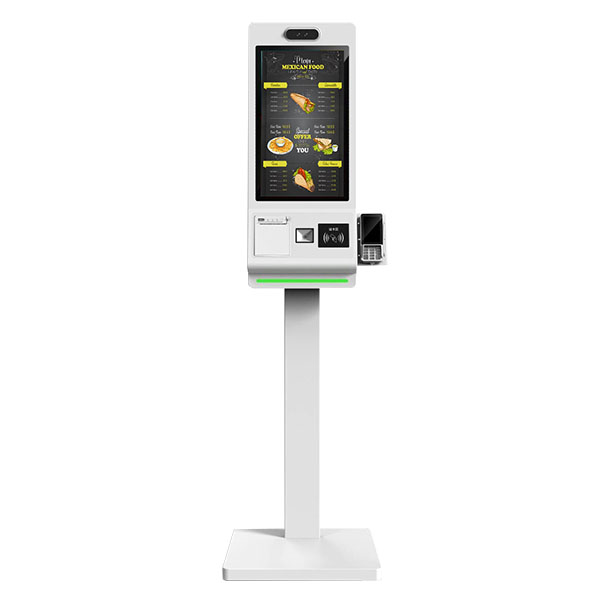

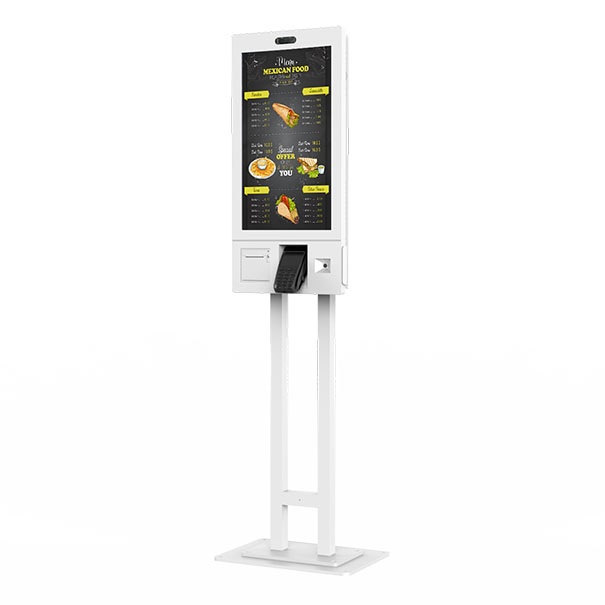

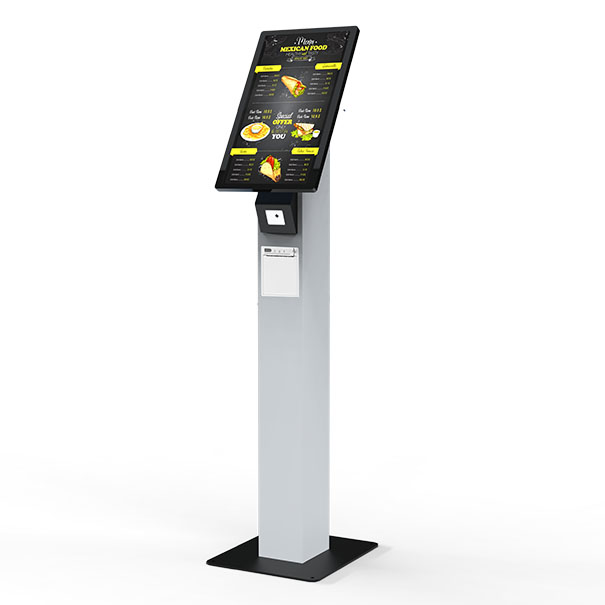

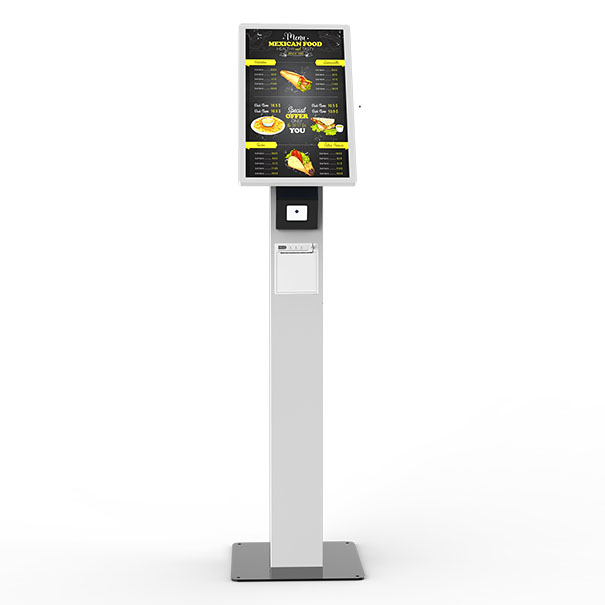

21.5-inch ordering machine

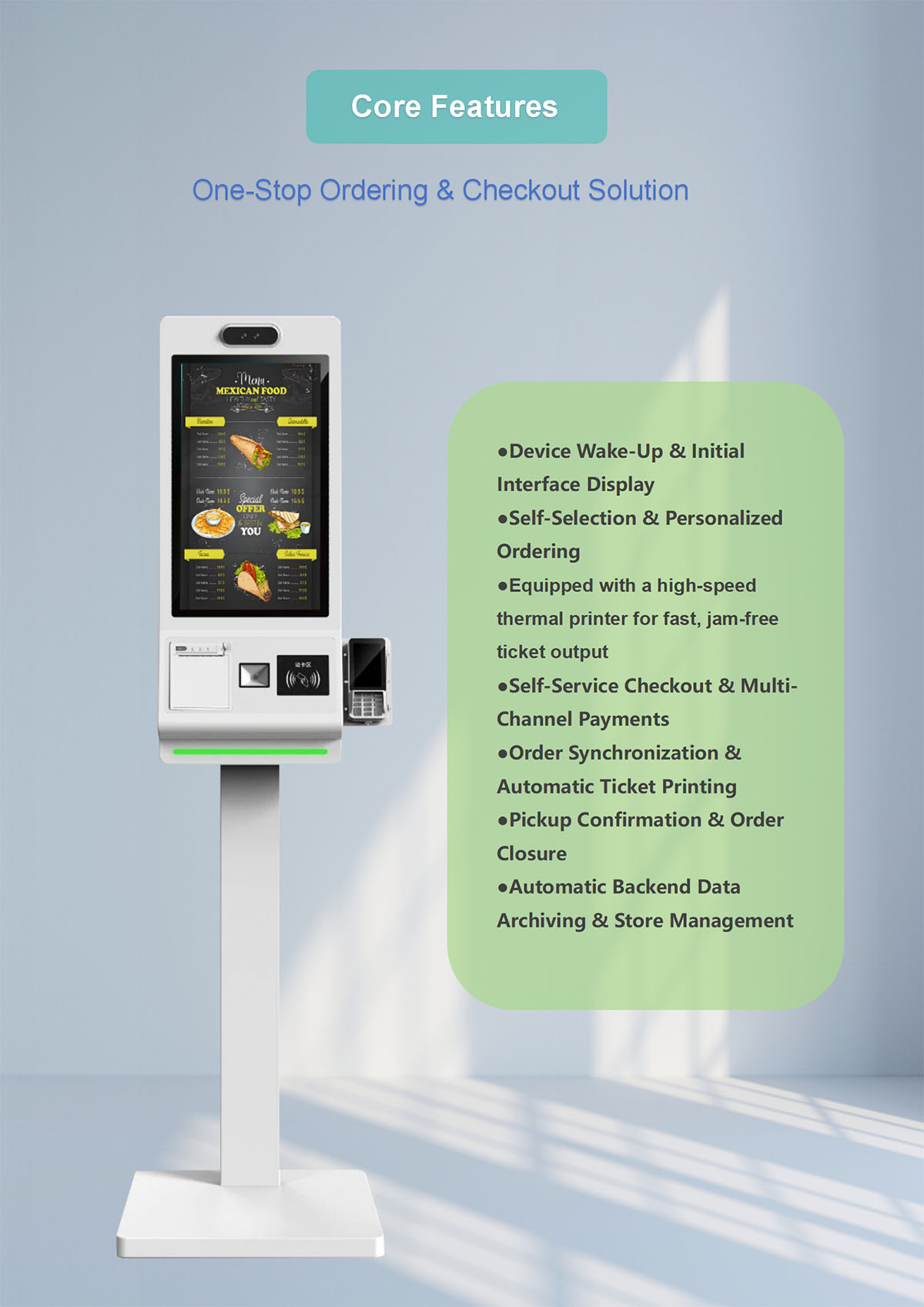

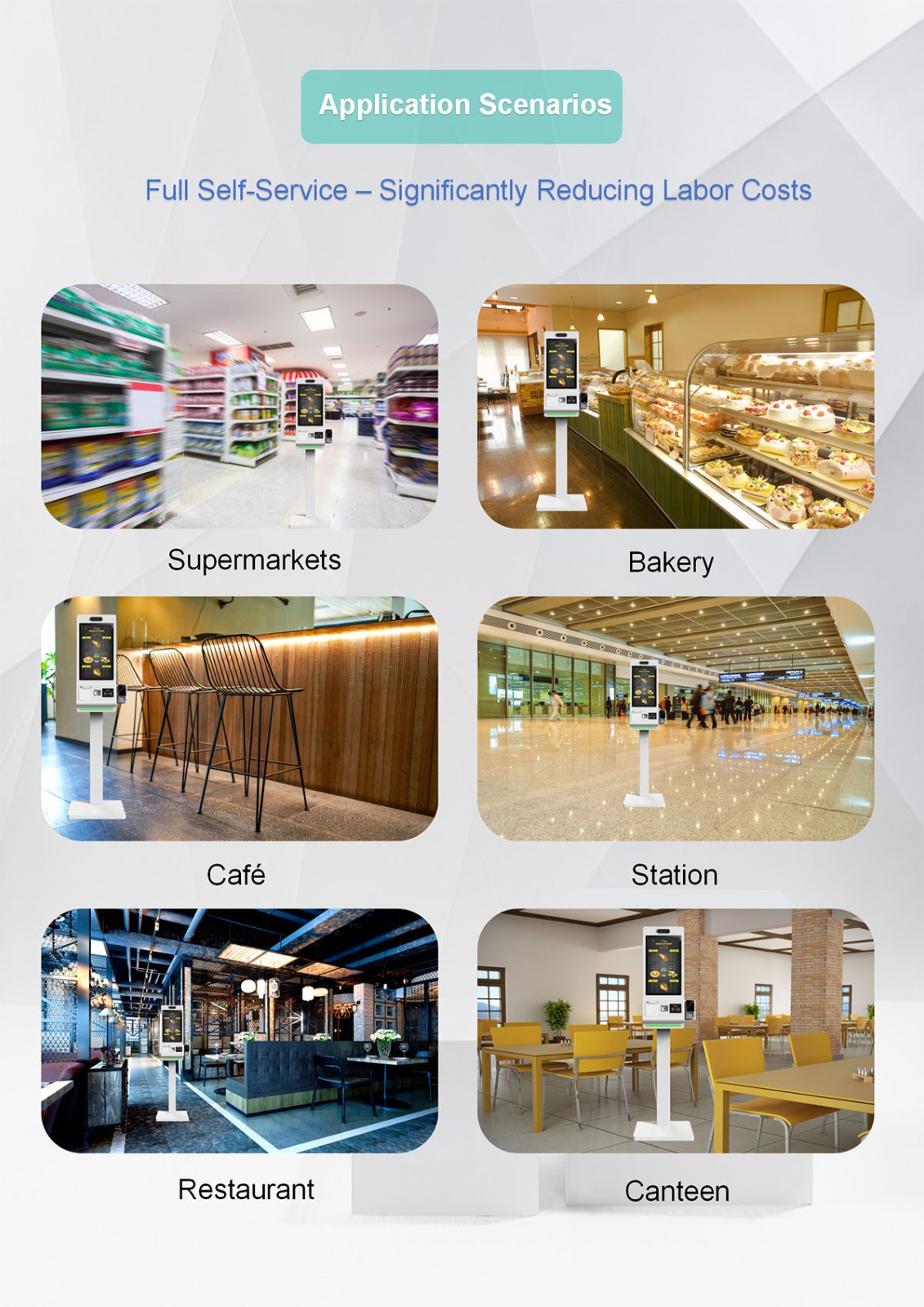

The self-service ordering machine is equipped with a high-performance processor, which runs smoothly without lagging. High definition touch screen, sensitive operation, simple and easy to understand interface. Support multiple payment methods such as QR code scanning and card swiping. Equipped with functions such as dish display and membership marketing, it can quickly process orders. Using industrial grade materials, stable and durable, suitable for various catering scenarios such as restaurants and fast food restaurants, effectively improving ordering efficiency and service quality.

Contact Us
Product Details

Product Parameters
Size21.5 inch23.8 inch27 inch32 inch
TouchCapacitive touch10101010
LCD parameterScreen21.5″TFT LED23.8″TFT LED27″TFT LED32″TFT LED
Display Area / Proportion477(W)×268(H) mm/16:9527(W)×296(H) mm/16:9598(W)×336(H) mm/16:9698(W)×393(H) mm/16:9
Resolution1920x10801920x10801920x10801920x1080
Android parameters (optional)CPUStandard: RK3568, quad-core 64-bit Cortex-A55 CPU, up to 2.0 GHz
RAM4GB
HDD32GB(Extensible）
NetworkWiFi/Bluetooth/Extensible 3G、4G
OSAndroid 11.0
Androidsystem functionLanguageMany languages
Video formatsRM/RMVB，MKV，TS，FLV，AVI，VOB，MOV，WMV，MP4
Audio formatsMP3，WMA，WAV，AC3，FLAC
Image formatsBMP/PNG/GIF/JPEG
Computer configurationCPUStandard Configuration: Intel Core i5 (4th Gen)
RAMDDR3 8G
HDD256G SSD
SystemWINDOWS 10
windows SystemVideo formatsMPEG-1、MPEG-2、AVI(3.11)、XVID、H.264
Audio formatsMPEG-1 Layers I、II、III2.0, MPEG-4 AAC-LC 5.1/HE-AAC 5.1/BSAC 2.0, WAV, 24-bit linear PCM 7.1
Image formatsBMP、JPEG、PNG、GIF
NetworkLAN, wan, WIFI, 4G (extension)
printerPrinter specifications80mm
Printing methodThermal dot printing
resolution ratio8dots/mm
Effective printing width72mm
Cutting knifeFull cut+half cut switching support

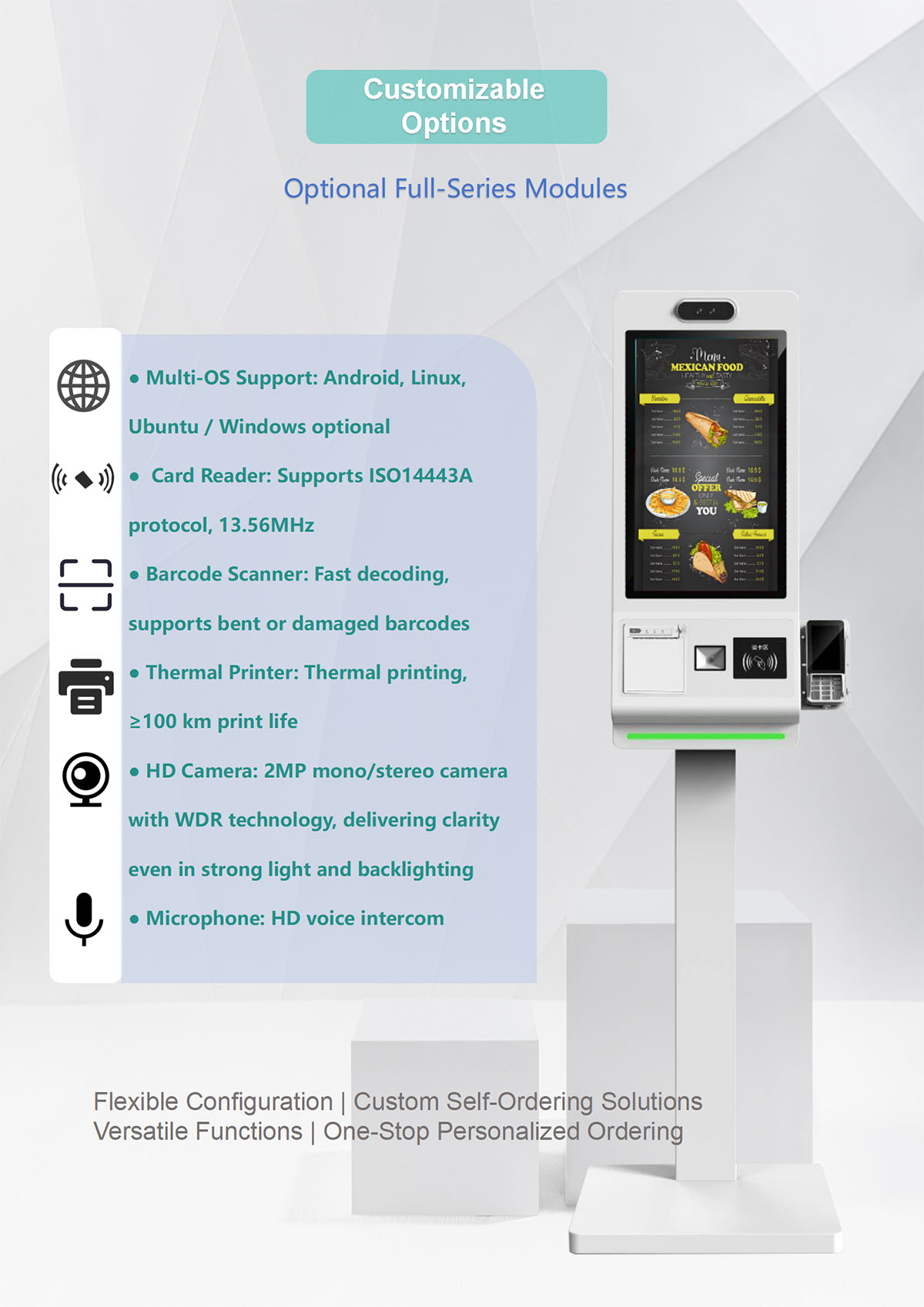

QR code scanner （Optional）Identification code systemQR Code、PDF417、DataMatrix（ECC200）
Code39、Code93、CodaBar 、Interleaved 2 of 5、Industrial 25、Matrix 2 of 5、Code11、 MSI 、RSS-14 Restricted RSS, Extended RSS
card reader（Optional）Operating Frequency13.56MHz
Support cardscontactless card: Mifare One S50/S70、Mifare UltraLight NTAG213/215/216
AppearanceBody colorwhite + silver/custom
MaterialToughened glass + sheet metal + aluminum profiles

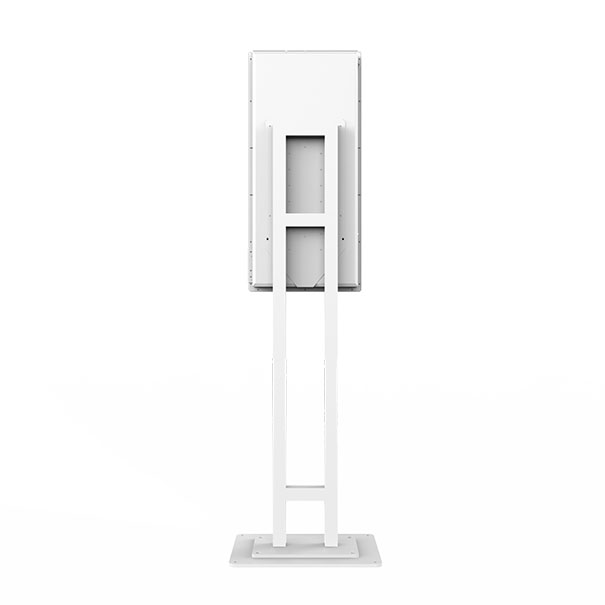

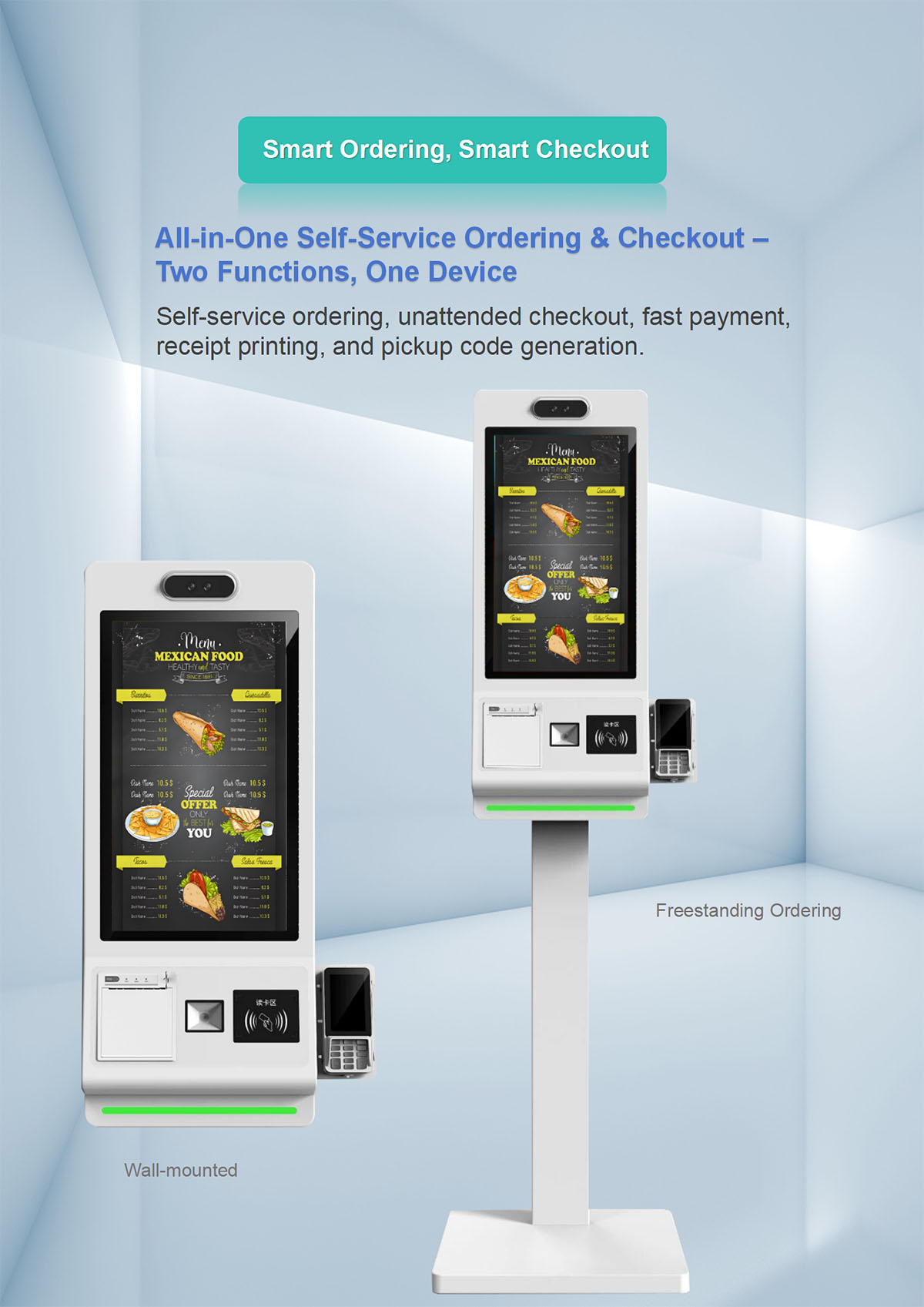

InstallationWall

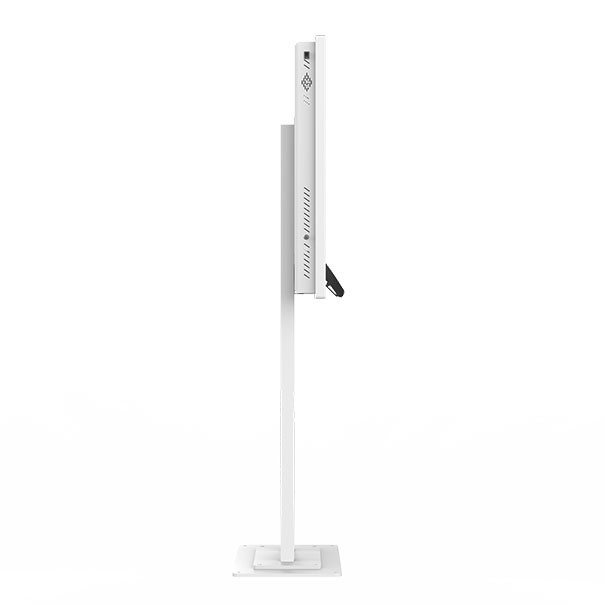

vertical
Power supplySupply voltage90V-240V/50HZ-60HZ
